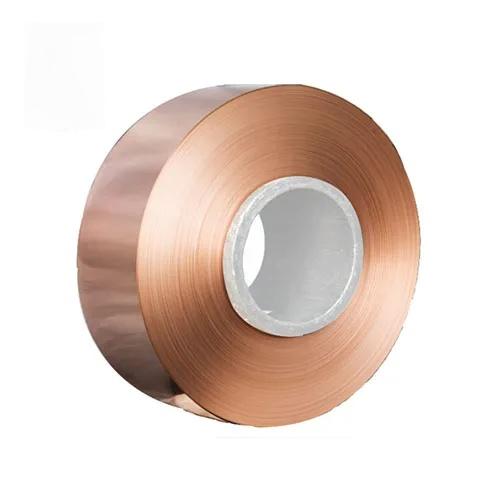

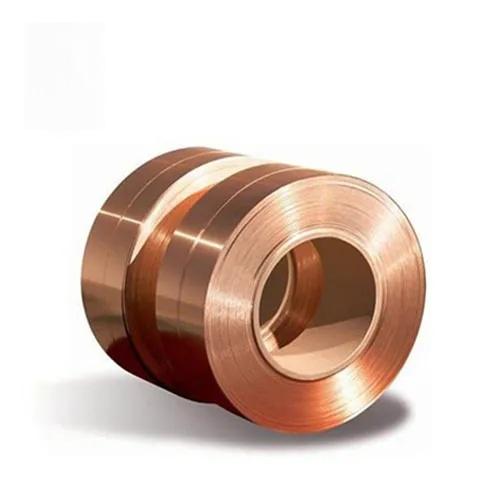

Tin-phosphor bronze strip has higher corrosion resistance, wear resistance, and does not spark when impacted.Tin-phosphor bronze strip is an alloy copper tape with good electrical conductivity, not easy to heat up, ensuring safety and having strong fatigue resistance. The jack reed of the tin-phosphor bronze strip is hard-wired electrical structure, no rivet connection or no friction contact, which can ensure good contact, good elasticity, and smooth insertion. |
| Item | Tin-phosphor Bronze Strip |
Standard |
ASTM, AISI, JIS, ISO, EN, BS, GB, etc. |
Processing service |
Bending, Welding, Decoiling, Cutting, Punching, Customized |
|
Size |
Thickness: 0.1mm~3mm Width: 30mm~1000mm Length: 10mm~12000mm Various sizes can be customized |
Export to |
United States, Australia, Brazil, Canada, Germany, Peru, Japan, Italy, United Kingdom, Arabia, etc. |
Package |
Standard export seaworthy package,or as required. |
Price term |
EXW, FOB, CIF, CFR, CNF, etc. |
Payment |
T/T, Western Union, L/C, etc. |
Certificates |
TUV&ISO&GL&BV,etc. |
Elongation (≥ %) |
40% |
Surface |
Mill /Polished/ Bright /Oiled / Hair line /Brush /Mirror/ Sand blast/ or as required. |
Performance |
Good cold working performance, good electroplating, hot dip plating and welding performance, high strength, high elasticity, corrosion resistance to seawater and process atmosphere. |
Application |
Mainly used as wear parts and elastic elements. Computer connectors, mobile phone connectors, high-tech industry connectors, electronic and electrical springs, switches, electronic product slots, buttons, electrical connectors, lead frames, vibrating sheets and terminals, etc. |
|
Features and processing: Phosphorus-containing tin bronze is a well-known elastic material. During processing, it is necessary to control the grain size before cold working and low temperature annealing after processing. The strength, modulus of elasticity and fatigue strength of the fine-grained material are higher than those of the coarse-grained material, but the plasticity is lower. Cold-worked materials are annealed at 200-260℃ for 1-2 hours at low temperature, resulting in annealing and hardening effect, which can further improve the strength, plasticity, elastic limit and elastic modulus of the product, and increase the stability of elasticity. |
|
FAQ: Q1: What product information do I need to provide? A: You need to provide the grade, width, thickness,coating and the number of tons you need to purchase. Q2: About product prices? A: Prices vary from period to period due to cyclical changes in the price of raw materials. Q3: Can you produce according to samples? A : Yes, we can customize for customers according to your samples or technical drawings. Q4: Can you provide supplementary samples? A: Yes, we can provide samples when in stock, but the shipping cost is borne by the buyer. |
